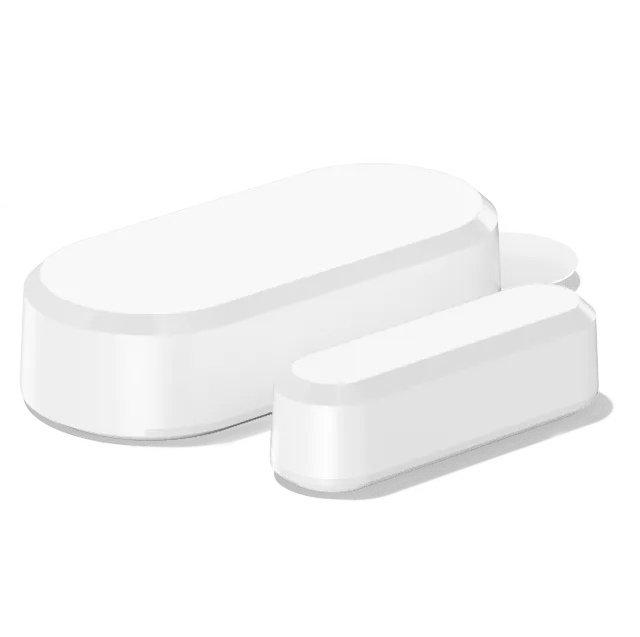

Bluetooth 5.0 Door Sensor
In StockSKU: 100560
0 ₼
Bluetooth 5.0 Qapı Sensoru ilə təhlükəsizliyinizi təkmilləşdirin. Effektiv, real vaxt siqnalları və asan quraşdırma üçün Bluetooth LE 5.0-dan istifadə edir.
minew importsensor-tag
Fast Delivery (1-3 days)
1 Year Official Warranty
100% Original Product
Free Installation
Bluetooth 5.0 Door Sensor is a door magnetic sensor leveraging Bluetooth® LE 5.0 technology. Utilizing low-power sensors, it converts door and window state signals into digital signals and transmits data via Bluetooth® LE broadcast. When integrated with a cloud platform, the Smart Door Sensor works seamlessly with G1 and other gateways for real-time monitoring, intelligent care, abnormal alerts, and scene linkage. It can also connect with MG5 and other battery-powered LTE gateways, optimizing power consumption, extending battery life, and efficiently completing monitoring tasks.
- 100 meters broadcast range
- Tamper alarm
- Scheduled monitoring
- 2048 local data storage
- Easy battery replacement
- OTA update support
Tamper-Proof Magnetic Sensor
Utilizing a low-power magnetic sensor, this advanced design combines tamper-proof and magnetic detection features for enhanced security. The sensor offers effective tamper alarms alongside door magnetic alarms, providing comprehensive protection for your business or home.
Easy to Set Up
Smart Door Sensor offers a dual-sided adhesive installation way and features a circuit-free magnetic body, ensuring easy installation on doors and windows for seamless monitoring and enhanced security purposes.
Configuration with MSensor App
It offers customizable broadcasting settings through the MSensor app, including combination frame broadcast modes like power-saving (broadcast on trigger) and regular mode. Export door magnetic and tamper history records as spreadsheet files, select door magnetic detection time periods, and more to suit your needs.
Seamless Solutions for Diverse Scenarios
Office
Home Security
Hospital
Hotel
Specifications
| Main Body Material | ABS |
| Color | White (customizable) |
| Weight | 26.6 g (battery included) |
| Bluetooth® LE Chipset | nRF52 series |
| Bluetooth® LE Version | Bluetooth® LE 5.0 |
| Battery | 220mAh ; replaceable |
| Battery Life | Around 13 months (under default settings) |
| Working Temperature | -20°C to 60°C |
| OTA Updates | Supported |
| Configuration App | MSensor |
FAQs
- How is the timing function in the S4 door sensor?The S4 device can only record its own runtime. Accurate timing requires network time synchronization. To improve timing accuracy, our device includes an internal clock crystal. Each time the device connects to the app or gateway to download historical data, it automatically synchronizes time, enhancing the reliability of timing-related operations.
- Does the S4 Bluetooth® 5.0 Door Sensor support broadcasting and alerting only when a state change occurs?Yes, it also supports periodic broadcasting, and the broadcasting interval can be configured.
- How is your S4 Bluetooth 5.0 Door Sensor built to interact with magnets. Reed Switch or Magnetic sensor?When the magnet is near the circuit, it signals a 'closed' state; when the magnet moves away, it signals an 'open' state.
- What is the sensitivity of the Bluetooth 5.0 Door Sensor? Is it adjustable?Currently, the S4 has a maximum sensing distance of 2.5 cm and does not support sensitivity adjustment via programming. Theoretically, adjusting the size and strength of the magnet can alter the sensing distance.
- What is the maximum distance between the two parts that S4 Bluetooth 5.0 Door Sensor can detect?Based on previous hardware testing, the S4 body can detect the magnet at a maximum trigger distance of approximately 25 mm. In practical tests, it reliably detected closure within a shell spacing of about 1-2 cm. Using a larger and stronger magnet theoretically extends the maximum trigger distance further.
