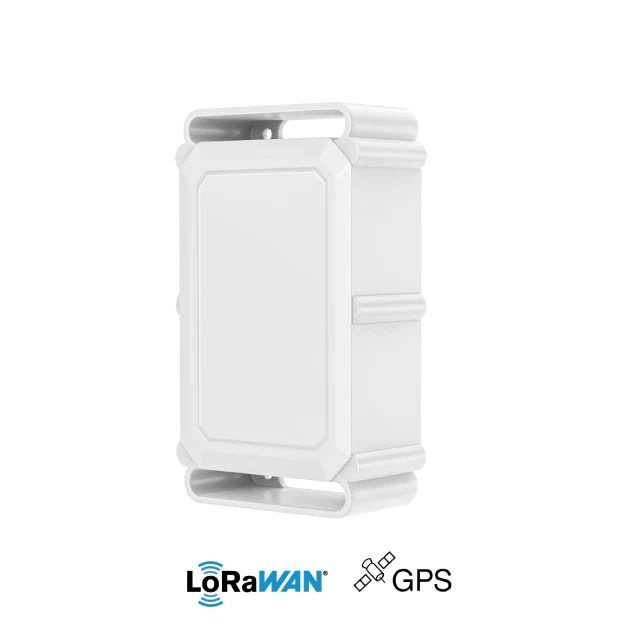

LTB01-G LoRaWAN GPS Asset Tracker
In StockSKU: 100548
0 ₼
LTB01-G GPS Asset Tracker ilə aktivlərinizi izləyin və qoruyun. GPS, LoRaWAN® texnologiyası və müdaxilə əleyhinə sensorla etibarlı izləmə təmin edir.
minew importasset-trackerasset-tag
Fast Delivery (1-3 days)
1 Year Official Warranty
100% Original Product
Free Installation
The LTB01-G LoRaWAN GPS Asset Tracker is a wireless monitoring device based on the standard LoRaWAN protocol. It features GPS technology and an accelerometer for accurate location and movement tracking. This GPS asset tracking device automatically acquires GPS positioning data during movement and supports data transmission over distances exceeding 2km (1.24 miles). The LTB01-G asset tracker is compact, battery-powered, and has ultra-low power consumption. With its anti-theft design and easy installation, it can be easily deployed in settings such as enterprise asset management, mobile property tracking, livestock monitoring, bulk goods oversight, and shared bicycle systems.
- LoRaWAN standard protocol
- Over 2km communication range
- GPS positioning
- Dual reporting mode
- Anti-tamper alarm
- 2400 mAh battery
- IP65 water and dust resistance

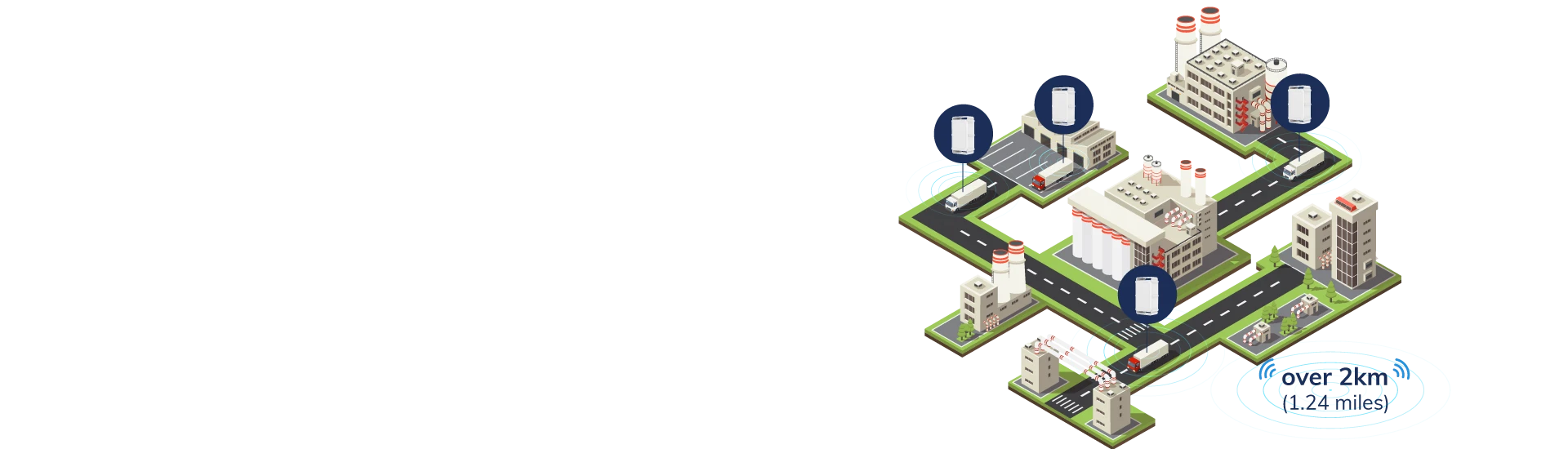

Long Range Transmission
This LoRaWAN-based multiband device supports nearly all frequency bands in global areas. Use the LTB01-G GPS asset tracker to build a scalable asset tracking solution based on the LoRaWAN network, with a communication range of up to 2 km (in open areas).
Accurate Tracking Globally
• GPS Positioning System
• Positioning accuracy: 5m-10m
Periodic or Movement-based
Receive location updates regularly, or when the movement occurs. Always track your assets accurately with this GPS asset tracking device.
Periodic Mode
Customize the report interval to regularly receive the location updates.
Motion Mode
Get instant notifications for stop/move tracking when the accelerometer is triggered.
Ultra Low Power
With a built-in 2400 mAh battery and low power consumption supported by LoRaWAN technology, the LTB01-G GPS tracker enables an extended track-and-trace period.

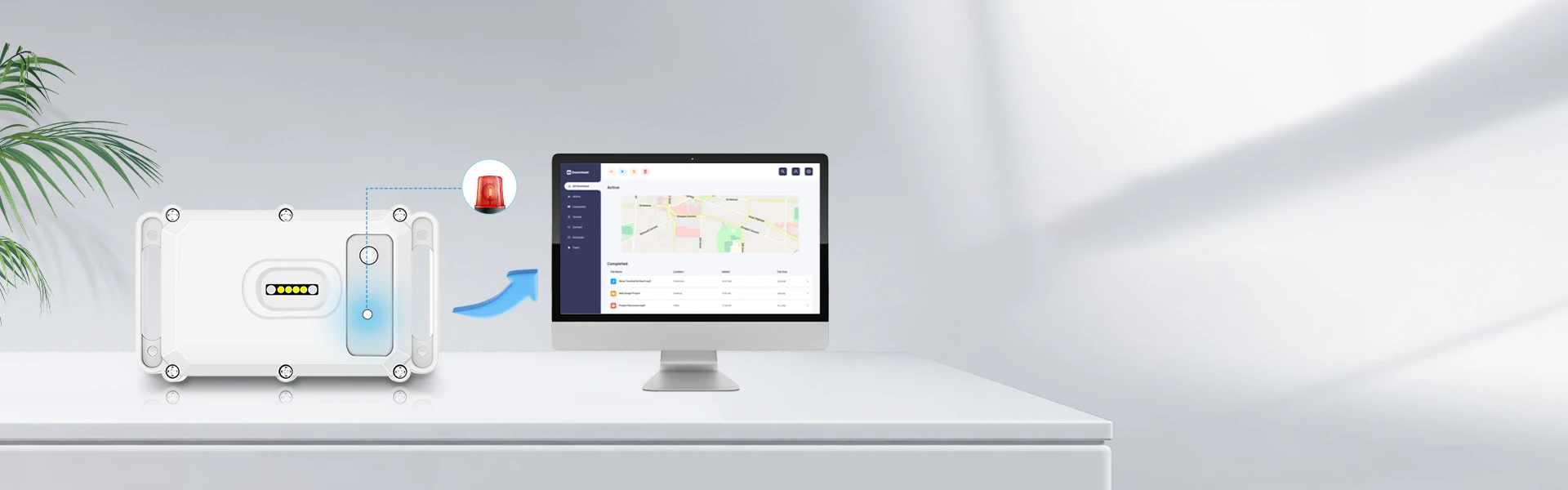

Theft Prevention
With a switchable anti-tamper design, the LTB01-G tracker ensures all your assets are effectively managed and protected, including the tracker itself.
Use Cases
-
Enterprise asset
Digitalize and simplify the asset management within your organization.
-
Cold chain
Real-time location updates to ensure perishables arrive on schedule.
-
Warehouse
Instantly locate and check stock.
-
Container
Monitor shipments port-to-port with pinpoint GPS reliability.
-
Shared bicycles
Prevent theft and help optimize the deployment of shared bicycles.
Specifications
| Basic Info. | |
|---|---|
| Shell Material | PC |
| Size | 111mm*65mm*33mm |
| Power Supply | rechargeable lithium battery |
| Battery | 3.7V / 2400mAh(rechargeable) |
| Battery Life Estimates | Once every 6 hours location updates – 180 days Once every 30 minutes location updates – 30 days |
| Operating Temperature | -20℃ ~ 60℃ |
| Operating Humidity | 10% ~ 95% RH, non-condensing |
| Protection | IP65 |
| LoRaWAN Specs. | |
| Operating Frequency | Multiple bands optional: EU868 / US915 / AS923 / KR923 / IN865 etc |
| Communication Protocol | Standard LoRaWAN protocol |
| Operating Mode | Class A |
| Communication Distance | >2km (1.24 miles) in open area |
| Reporting | 30 minutes (adjustable), immediate reporting when accelerometer is triggered |
| Hardware Specs. | |
| GPS | Positioning accuracy 5m-10m, supports GPS and Beidou dual-mode positioning |
| Sensor | Accelerometer |
| Button | Power on / Reset |
FAQs
- Why is the LTB01-S LoRaWAN GPS Tracker not reporting GPS data?The LTB01-S requires outdoor GPS signal to acquire and report location data. If the reporting interval is too short, such as 60 seconds, the device may not complete GPS acquisition in time. It typically takes about 70 seconds to fix a location, so data may be reported without GPS information. We recommend setting the GPS reporting interval to 120 seconds or longer to ensure reliable location updates.
