LXSD01 LoRa Signal Detector
In StockSKU: 100540
0 ₼
LXSD01 LoRa Siqnal Detektoru standart LoRaWAN protokoluna əsaslanan LoRa siqnal keyfiyyətinin yoxlayıcısıdır. RSSI, SNR və paket itkisi dərəcəsini ölçür
minew importtool
Fast Delivery (1-3 days)
1 Year Official Warranty
100% Original Product
Free Installation
The LXSD01 LoRa Signal Detector is a LoRa signal quality tester based on the standard LoRaWAN protocol. It measures RSSI, SNR, and packet loss rate across both uplink and downlink channels. With GPS positioning technology, it records each measurement point, helping to create an effective LoRaWAN network coverage map. Network insights are easily accessible through the user-friendly LCD screen. The LXSD01 detector is durable and designed for long service life, making it ideal for continuous signal quality testing during LoRaWAN network deployment.
- LoRa Signal Detecting
- RSSI / SNR / Packet Loss Rate
- Measurement Points Locating (GPS)
- LCD Display
- Long-Lasting Battery Life
- IP65 Protection
Gain intuitive network insights now.
Equipper with a 2.67″ LCD display, the LXSD01 presents instant and intuitive measuremetns of RSSI, SNR, and packet loss rates. When deploying a LoRaWAN network, the LSXD01 signal detector works to avoid dead spots and optimize network planning. It simplifies troubleshooting and lowers future maintenance costs.

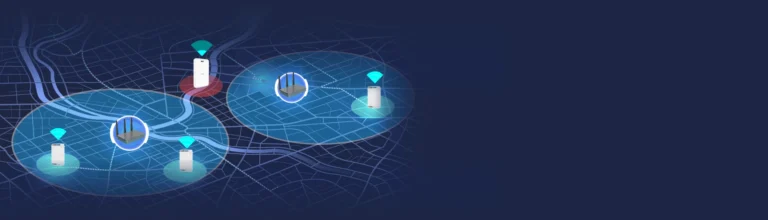

With a road map help.
The LXSD01 detector’s GPS technology creates an optimal network coverage map. It records each measurement point, helping you identify areas with strong LoRaWAN network coverage and where additional coverage is needed.
Explore farther, last longer.
No more interruptions during maintenance. The LXSD01 signal detector offers a 24-hour lifespan even during continuous testing. You can focus on what matters instead of worrying about battery drain and data loss.
Rugged, reliable, unstoppable.
With rugged housing, the LXSD01 signal detector is protected against dust and water. It delivers accurate LoRa signal detection even in dust-dense environments. Additionally, it performs reliably in farmlands and parks that require frequent irrigation.
Specifications
| Basic Info. | |
|---|---|
| Power Supply Type | Rechargeable lithium battery |
| Battery Capacity | 3.7V / 3000mAh |
| Operating Temperature | -10℃ ~ 50℃ |
| Operating Humidity | 10% ~ 95% RH, non-condensing |
| Dimensions | 295mm * 85.5mm * 29.5mm (including antenna) |
| Service Life | 24 hours (continuous testing) |
| Protection Level | IP65 |
| LoRaWAN® Specs. | |
| Operating Frequency (MHz) | EU863-870MHz, US902-928MHz |
| Communication Protocol | Standard LoRaWAN® protocol |
| Receiver Sensitivity | -141dBm @ SF12 |
| Transmit Power | ≤19dBm (adjustable) |
| Operating Mode | Class A |
| Antenna | External antenna |
