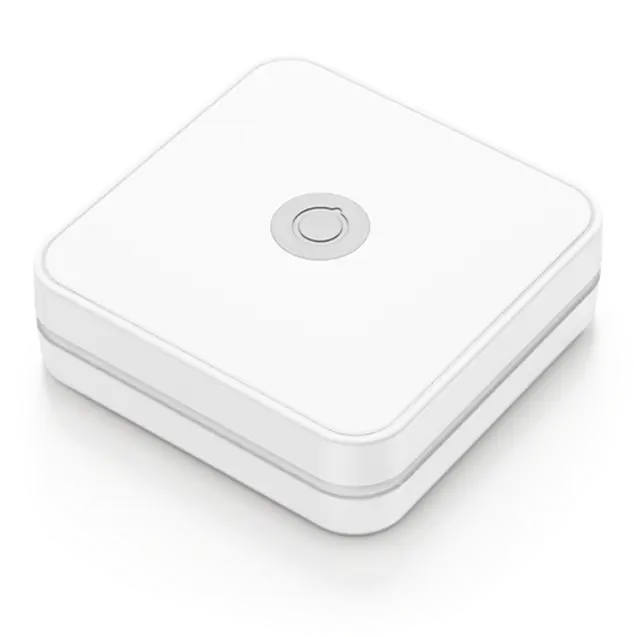

MBM01 Ultra-Long Range Beacon
In StockSKU: 100611
0 ₼
MBM01 Uzun Bluetooth Beacon 600 m diapazonu və böyük batareyası ilə hava limanları və ictimai yerlər üçün idealdır. Mesh, Thread, Zigbee dəstəkləyir
minew importbluetooth-beacon
Fast Delivery (1-3 days)
1 Year Official Warranty
100% Original Product
Free Installation
The MBM01 BLE Location Beacon is a highly capable beacon device with superior broadcast data transmission range and battery life. Available in two versions, it supports advanced features for diverse applications. The first version of MBM01, with the ultra-low power nRF52810 chip, offers a broadcast range of up to 210 meters, perfect for traffic management and marketing in public spaces. The second version, featuring the nRF52833 chip with Bluetooth 5.1 direction finding, boasts an impressive broadcast distance of up to 600 meters (1,968 feet) or more at a 125Kbps setting.
Both versions can be easily deployed in airports, railway stations, and other expansive large open areas to manage human traffic, respond to emergencies, and deliver targeted marketing. With ultra-long version supporting for Direction Finding, high-throughput 2 Mbps, and protocols like MESH, Thread, and Zigbee, MBM01 provides great flexibility and is ideal for a wide range of commercial and industrial applications.
MBM01 Standard Long Range Version
- Bluetooth® LE & nRF52810 chip
- Up to 210 meters broadcast range
- IP67 waterproof & dustproof
- Two deployment options
- External operation button
- Replaceable battery & up to 10 years lifetime
MBM01 Ultra-long Range Version
- Up to 10 years service lifetime
- Compatible with 1Mbps/125Kbps
- IP67 waterproof & dustproof
- Demo cloud platform & API available
- External operation button
- Up to 1,968 ft (600m) broadcast distance
- BLE 5.1 & nRF52833 (nRF52840 Optional)
Ultra-long Range & Long Battery Life
The broadcast distance of up to 1,968 ft (600 m) or more, achieved at the 125 Kbps setting, underscores the exceptional coverage of the MBM01. Besides, its impressive 10-year battery life not only guarantees sustained operational efficiency but also minimizes maintenance requirements, providing extended periods of reliable service without interruption.
Ultra-low Energy Consumption
The nRF52 series chip, known for its superior power management capabilities, is housed inside the MBM01. The beacon has extended operational life due to BLE 5.1 support, which makes it the best option for long-term deployments in energy-sensitive applications.
Platform-Neutral Interaction
The MBM01 has exceptional compatibility supporting Android 4.3 and above as well as iOS 10.0 and higher. It enables a broad-reaching and standardized approach to engagement by simultaneously broadcasting both iBeacon and Eddystone protocols.
Seamless Solutions for Diverse Scenarios
Shopping Habits Analysis & Precision Marketing
Based on the Bluetooth positioning technology and relative software development, users can collect data of customer shopping habits & behaviors for precision marketing. Also, the collected data can help users to adjust the commodity category or display to improve the economic profits.
Medical Consultation Tracking & Safety Responding
In a general hospital, based on the indoor positioning technology and relative software development, the admin can collect data of daily medical consultation for the reasonable arrangement of medica. Also, through resources the reasonable installation of MBM01 in hospitals, the admin can locate every safe-guard's positions for fast responding once emergency happening
Information Pushing & Indoor Navigation
Through the reasonable installation of MBM01 in airports, helping passengers save time to find the right boarding gate or proximity shops. Likewise, the admins can push information, such as flight or promotion information, to the user's mobile phone for message notifica tion and proximity marketing.
Specifications
| MBM01 Ultra-long Range Version | MBM01 Standard Long Range Version | |
| Color | White | |
| Operating Temperature | -20 ℃~65 ℃ / -18~50 ℃ (Depend on the battery) | |
| Weight | 129g（Lithium battery）/ 153.4g（Alkaline battery) | |
| Device Firmware | iBeacon & Eddystone(Default) and OTA | |
| Chip | nRF52833 / nRF52840 (Optional) | nRF52810 |
| Bluetooth Protocol | Bluetooth 5.0 and above (Bluetooth 5.1) | |
| Battery | Lithium battery*4 total capacity: 10,800mAh Alkaline*4 total capacity: 5,800mAh |
|
| Broadcasting Range | Up to 1,968 ft (600 m) | up to 688 ft (210 m) |
| IP Certified | IP67 Waterproof & Dustproof | |
| Sensors | Accelerometer Optional | |
| Installation Methods | Double-side adhesive / Screw bracket (Optional) |
FAQs
- What are some suggested deployment ways for MBM01 Ultra-Long Range Beacon?The beacon's signal broadcast waveform is heart-shaped, meaning the strength is optimal on both sides of the antenna. Therefore, place the antenna first and position the sides in the aisle for the best signal. Note: If there are multiple beacons in a showroom, you can: 1. Adjust the broadcast strength and shorten the distance. 2. Filter the signal strength using RSSI.
