MST01 Industrial Temp and Humidity Sensor
In StockSKU: 100582
0 ₼
MST01 Sənaye Bluetooth Temperatur və Rütubət Sensoru ətraf mühitin monitorinqi üçün, xüsusilə istehsal, səhiyyə və anbar.
minew importsensor-tag
Fast Delivery (1-3 days)
1 Year Official Warranty
100% Original Product
Free Installation
MST01 is a industrial Bluetooth temperature and humidity sensor built to suit all industrial scenarios for environmental monitoring, especially in manufacturing, healthcare, and warehousing. It features settable alarm thresholds for temperature and humidity, and a long broadcast distance of up to 656 ft (200 m). One of the key features of MST01 is its ability to support optional probes. These probes can be used to measure temperature and humidity levels in a variety of settings to fit specific applications.
- High precision
- Temp. & humidity alarm threshold
- 20,480 local data storage
- 656 ft (200 m) broadcast range
- 4 optional probes
- IP67/IP65 dust & water resistance
- Wide-range temp monitoring(-40 to 125℃)

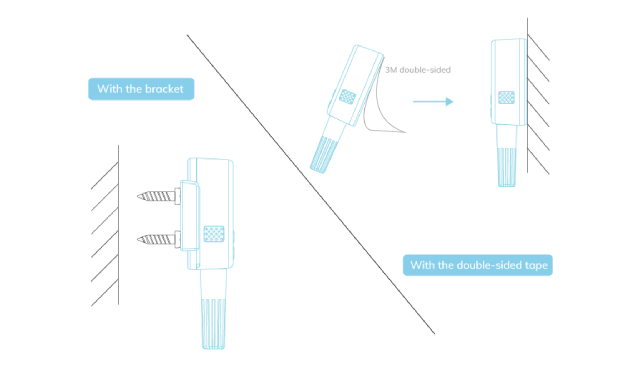

Designed with the Flexible Installation in mind
With the bracket
MST01 comes with a bracket, easy to be fixed with screws to the wall, ceiling, and corners, for example. Extremely durable.
With the double-sided tape
MST01 comes with double-sided tape as well. It’s also stable enough to install on a dry and clean surface.
MST01 comes with a bracket, easy to be fixed with screws to the wall, ceiling, and corners, for example. Extremely durable.
With the double-sided tape
MST01 comes with double-sided tape as well. It’s also stable enough to install on a dry and clean surface.

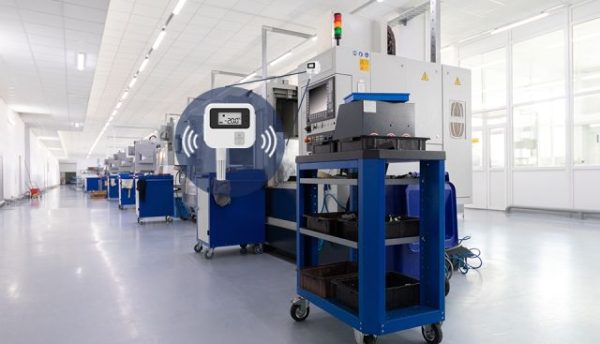

Industrial Production Environment Management
• High integration and accurate measurement.
• Timely monitor production environment changes.
• Mass recording of monitoring data.

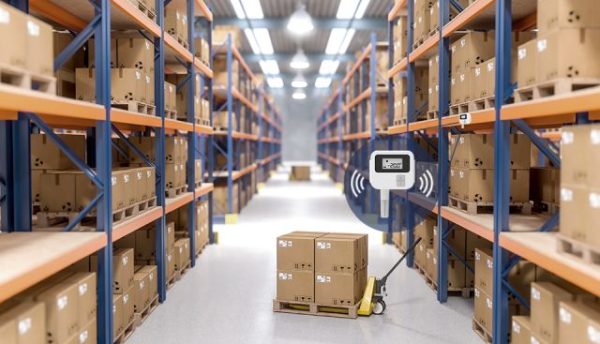

Smart Warehousing Construction
• Real-time temp&humidity data update.
• Transport environment monitoring.
• Elimination of product deterioration.
Medical Environment Monitoring
• Medicine and vaccines storage.
• Alarm threshold and timely abnormal alert.
• Precise control of medicine storage environment.
NIST Certified
Ensuring unwavering accuracy in the harshest environments, the MST01 sensor is rigorously tested and validated through NIST-traceable calibration.
Specifications
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Version | MST01-01 | MST01-02 | MST01-03 | MST01-04 | MST01-09 | MST01-10 | MST01 LoRaWAN L01 | MST01 LoRaWAN L02 | MST01 LoRaWAN L03 |
| Features | Breathable Short Temp & Humidity Probe | PE Protective Cover, Dustproof and Antifogging, Short Temp & Humidity Probe | PE Protective Cover, Dustproof and Antifogging, Long Temp & Humidity Probe | Stainless Steel Long Temp & Humidity Probe | Pt100 Sensor, Ultra-low Temperature Detection, Class A Accuracy | Food-grade Probe, Class A Accuracy | LoRaWAN-based, nRF54L15 Chipset, 100,000 Data Loas |
||
| Body Material | ABS+PC | ||||||||
| Wire Material | / | PVC | FEP | / | |||||
| Size Main Body (L*W*H) |
75*66.5*27mm (without bracket) 82*66.5*31.3mm (with bracket) |
||||||||
| Size probe(D*H) | Φ15.5*48mm | Φ15*30.5mm | 1 m (probe + cable length) | 1.07 m (probe +cable length) | 1.15 m (probe +cable length) | Φ15*30.5mm | 1 m (probe + cable length) | ||
| Weight | 106.8g | 103.1g | 131.1g | 128.9g | 129g | 138g | 100g | 105g | 127g |
| Sensor | Digital humidity and temperature sensor | Pt100，4-Wire | Digital humidity and temperature sensor | ||||||
| Temperature Range | -30℃ ~ 70℃ | -30℃ ~ 80℃ | -40℃ ~ 125℃ | -200℃ ~ 200℃ | -40℃ ~ 180℃ | -30~70℃ | -45℃ ~ 125℃ | ||
| Temperature Accuracy | ±0.3℃ (0 ~ 30℃) ±0.5℃ (other ranges) |
±0.5℃ (-30 ~ 80℃) ±1℃ (other ranges) |
±0.5℃ (-70 ~ 130℃) ±1℃ (-130 ~ 180℃) ±2℃ (other ranges) |
±0.5℃ (-40 ~ 130℃) ±1℃ (other ranges) |
±0.3℃ (0~30℃) ±0.5℃ (other ranges) |
±0.5℃ (-10~50℃) ±1℃ (other ranges) |
|||
| Temperature Resolution | 0.01℃ | ||||||||
| Temperature Units | ℃ / ℉ | ||||||||
| Humidity Range | 0~100%RH | / | 0~100%RH | ||||||
| Humidity Accuracy | ±5%RH | / | ±5%RH | ||||||
| Humidity Resolution | 0.01%RH | / | 0.01%RH | ||||||
| Logging Capacity | 20,480 | 10,0000 | |||||||
| Recording Mode | Cyclic storage ( older data is automatically overwritten when capacity is full ) | / | |||||||
| Bluetooth Chipset | Nordic nRF52 series | Nordic nRF54L15 chipset | |||||||
| Protocol | Bluetooth LE 5.0 | LoRaWAN | |||||||
| Broadcast Power | -40dBm ~ +4dBm | 19dBm(max) | |||||||
| Broadcast Range | 200 m (open area) | 150 m (open area) | Communication distance: > 1km (Visual range) |
||||||
| Battery Capacity | 2,700 mAh ( lithium battery ) | ||||||||
| Battery Life | 3 years (default) | 10 years | 5 years | ||||||
| LCD Display | Supported | / | Supported | ||||||
| Buzzer | Supported | / | |||||||
| OTA | Supported | ||||||||
| Security | Supports password-protected connections to prevent unauthorized access and modifications. | ||||||||
| Operating Temperature | -30 ~ 70℃ | ||||||||
| Operating Humidity | 0~95%RH，no condensation | ||||||||
| Protection | IP65 | IP64 | IP65 | IP65 / IP67 | IP67 | IP64 | IP67 |
FAQs
- What is the waterproof rating of the MST01’s display screen?Yes, the IP65 waterproof rating applies to both the sensor body and its components when assembled and sealed according to design specifications.
